From the roof up.

01 The support system

Pedestals

A level terrace
starts below.

Our adjustable pedestals support raised paving on roof terraces and balconies.

Enquire about pedestals Explore in 3D

Smart-Ped locking head, threaded rod and ribbed metal base — Smart-Ped, in detailProduct image

01 A closer look

Explore the pedestal

Turn the model, inspect the underside and explore the assembly.

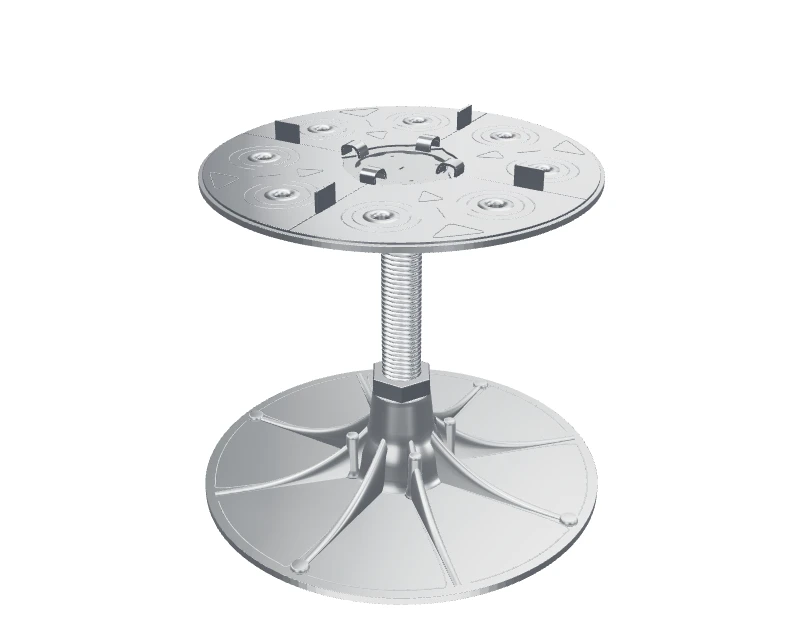

Pedestal / Image Three-dimensional pedestal model preview

The 3D model is illustrative. For product heights, see the height options.

02 The system

Beneath the paving

Our Smart-Ped pedestals combine aluminium and zinc-coated steel with a locking head and removable corner pieces.

Our pedestal rangeSeven height configurations. Scroll to compare.

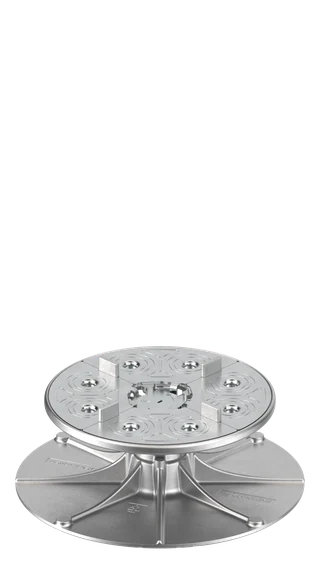

50-75 mmShort-base

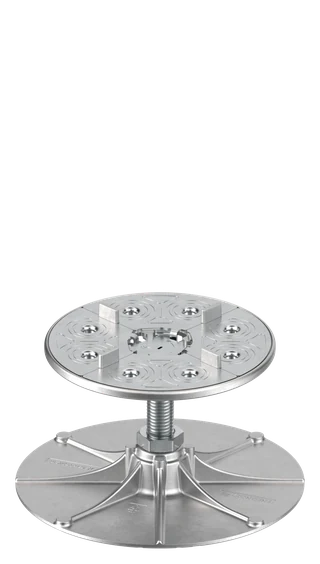

65-90 mmShort-base

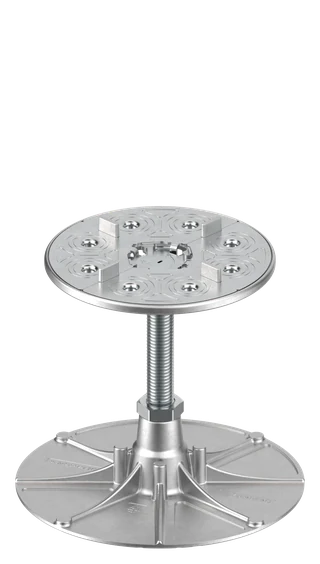

85-130 mmBase

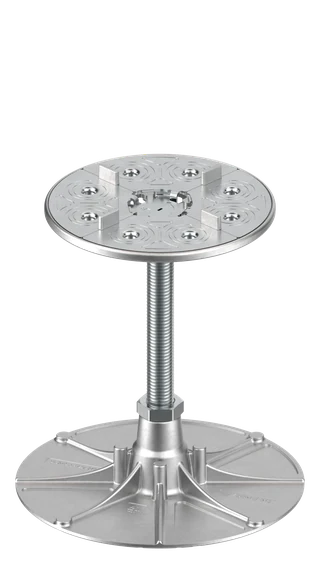

130-180 mmBase

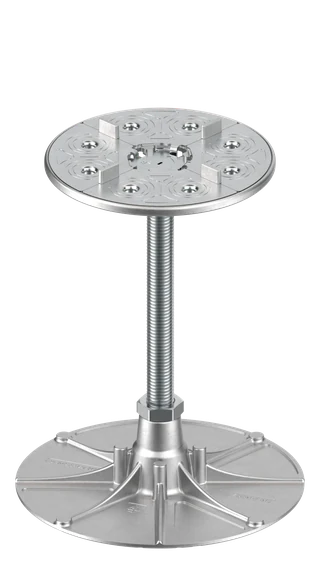

180-230 mmBase

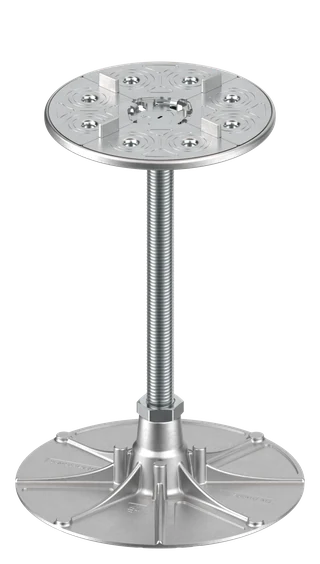

230-280 mmBase

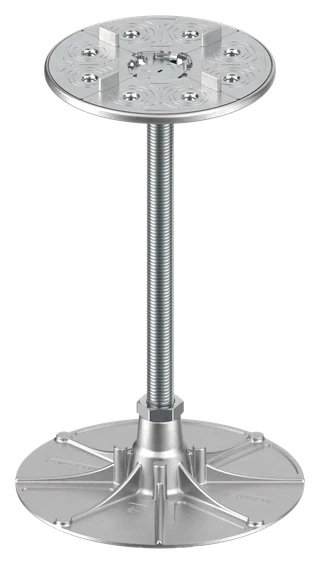

280-330 mmBase

Removable corner pieces

Four corner pieces lock into the Smart-Ped head. They can be released so bonded paving can be lifted for access below, following the system instructions.

Adjustable support

A threaded rod and two locking nuts connect the head to the base. The system uses a Short-base or Base to suit the height configuration.

Different paving patterns

Removable spacers allow four-spacer standard layouts, three-spacer stretcher bond and two-spacer edge details.

Height options

Standard height configurations

Standard pedestal configurations
Height range	Base type
50-75 mm	Short-base
65-90 mm	Short-base
85-130 mm	Base
130-180 mm	Base
180-230 mm	Base
230-280 mm	Base
280-330 mm	Base

For 40-50 mm and 50-65 mm configurations, ask us to confirm the options for your project.

Each range describes a separate configuration. Confirm the selected configuration against current product documentation. The 3D model illustrates the assembly and movement.

Accessories

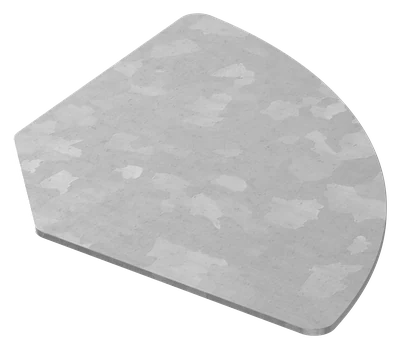

Smart-Ped Shims: Zinc-coated steel shims fit the removable corner pieces to help accommodate variations in paving thickness.

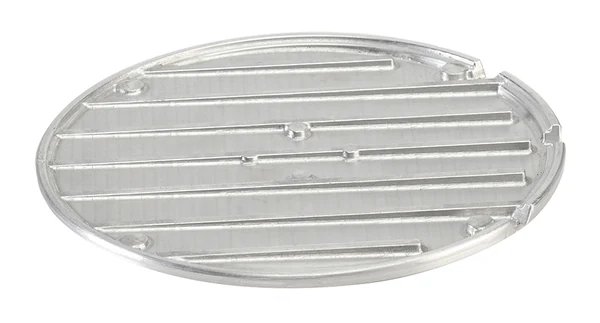

Slope correction: Aluminium correctors sit beneath the pedestal to accommodate a sloping surface. Include the roof fall in your project enquiry.
Dreen Hybrid adhesive HP50: The specified system adhesive bonds the paving to the removable corner pieces. The paving, pedestal and adhesive are considered together.

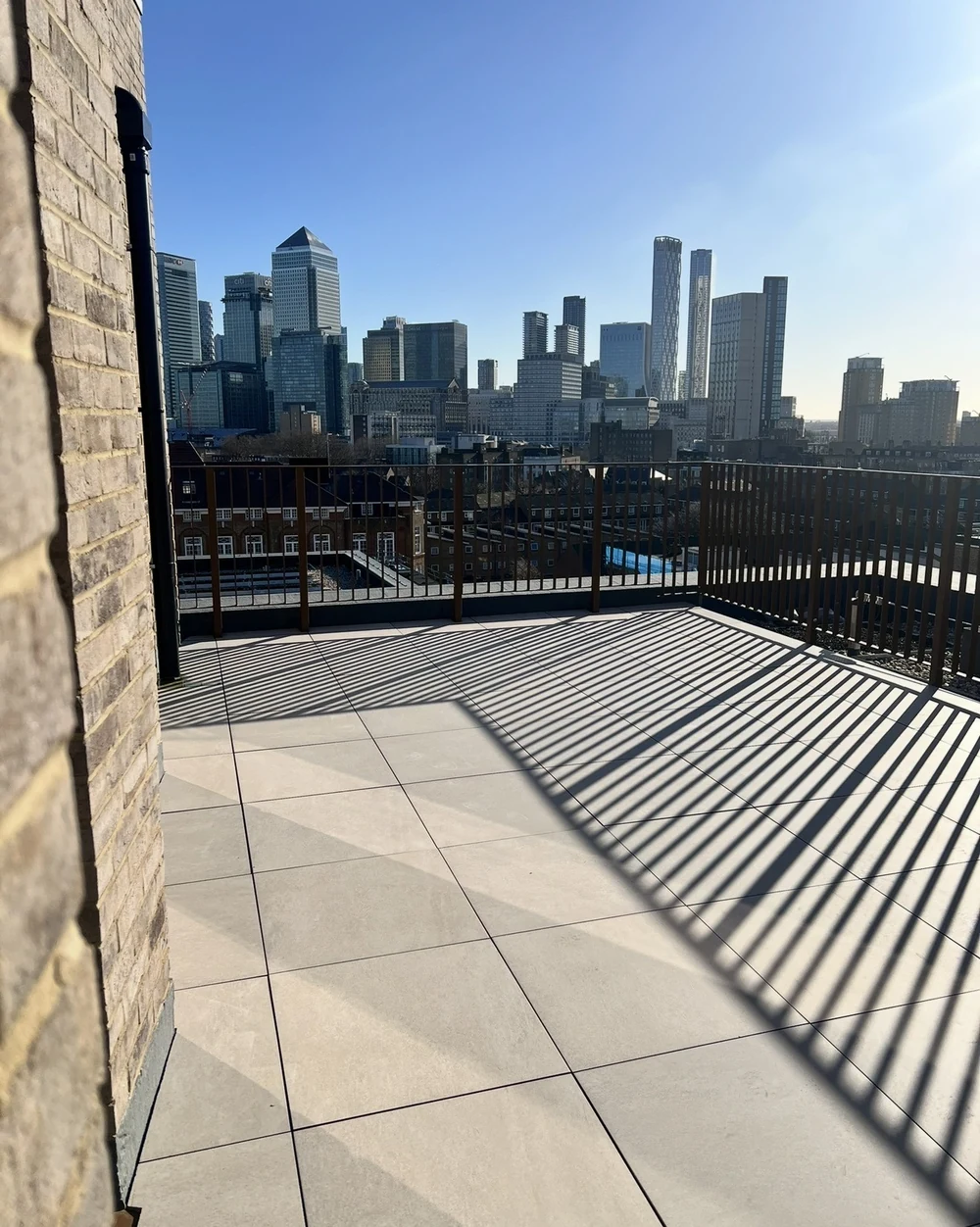

Paved roof terrace with long shadows and a view across the city skyline

Support. Surface. Setting.

Plan the support
and the paving

Start with the terrace layout and your choice of paving.

Include the location, intended use and any height requirements in your enquiry.

Looking at paving as well? Explore porcelain alongside your pedestal enquiry.

Explore porcelain

03 Your project

Start with
your terrace

These details help us understand the pedestal requirements.

The terrace

A roof terrace, balcony or wider development. Tell us where it is and the approximate area.

The paving

Your preferred paving size and finish, and any pedestal height requirements.

The timing

Your current project stage and when you expect to need the pedestals. A rough outline is enough to begin.

You can enquire before the details are settled.

Start an enquiry

Still working through the details?

Start with a message and your contact details. Project stage, area and other project information are optional.

Considering more than pedestals?

You can add porcelain, planters, pergolas or public furniture in the enquiry form. You can also change or clear your choices.
